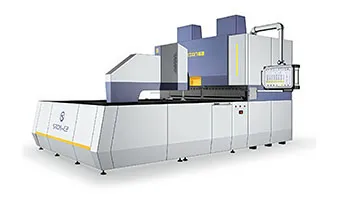

STON CNC panel bender is an automatic panel bending center that completes multi-side bends in one clamping. It helps sheet metal factories boost output, stabilize quality, and reduce dependence on highly skilled press brake operators.

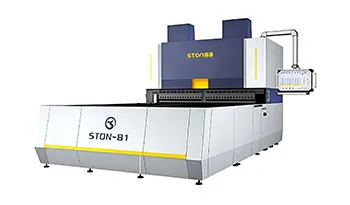

| STON-A2 | STON-B2 | STON-C2 | STON-D2 | STON-E2 | |
| Maks. bükme hızı | 0.2s/bıçak | 0.2s/bıçak | 0.2s/bıçak | 0.2s/bıçak | 0.2s/bıçak |
| Maks. bükme uzunluğu (CM) | 1000*1000 | 1400（1600）*1250 | 2000*1500 | 2500*1500 | 3200*5100 |
| Maks. bükme yüksekliği (mm) | 170/300 | 170/300 | 170/300 | 170/300 | 170/300 |
| Min. bükme kalınlığı (mm) | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 |
| Min. dört taraflı şekillendirme boyutu (mm) | 140×190 | 140×190 | 140×190 | 140×190 | 140×190 |
| Tek taraflı şekillendirme boyutu (mm) | 140 | 140 | 140 | 140 | 140 |
| Nominal gerilim | 380V | 380V | 380V | 380V | 380V |
| Maks. bükme kalınlığı (mm) | Paslanmaz çelik 1.2 Soğuk plaka 2.0 Alüminyum plaka 2,5 |
Paslanmaz çelik 1.2 Soğuk plaka 2.0 Alüminyum plaka 2,5 |
Paslanmaz çelik 1.2 Soğuk plaka 2.0 Alüminyum plaka 2,5 |
Paslanmaz çelik 1.2 Soğuk plaka 2.0 Alüminyum plaka 2,5 |
Paslanmaz çelik 1.2 Soğuk plaka 2.0 Alüminyum plaka 2,5 |
| Boyutlar (CM) | L* W*H 370 * 150 * 280 |
L* W*H 450 * 200（220） * 280 |
L* W*H 510 * 270 * 280 |
L* W*H 570 * 310 * 280 |
L* W*H 700 * 380 * 280 |
| Besleme masası | Fırça, üniversal bilye | Fırça, üniversal bilye | Fırça, üniversal bilye | Fırça, üniversal bilye | Fırça, üniversal bilye |
| Menteşe bıçağı | Standart | Standart | Standart | Standart | Standart |
| Gelişmiş komut | Standart | Standart | Standart | Standart | Standart |
| Bias yük algılama fonksiyonu | Standart | Standart | Standart | Standart | Standart |
| Bias yükü takip fonksiyonu | Standart | Standart | Standart | Standart | Standart |
| Plaka kalınlığı algılama fonksiyonu | Standart | Standart | Standart | Standart | Standart |
| Otomatik besleme arayüzü | Standart | Standart | Standart | Standart | Standart |
| Yüksek hız kontrol modülü | Standart | Standart | Standart | Standart | Standart |
The STON CNC panel bender is ideal for thin to medium sheet metal parts with multiple flanges and high appearance requirements. From cabinet doors and side panels to drawers and stainless steel worktops, it delivers consistent angles and clean edges for demanding industrial customers.
The STON CNC panel bender combines intelligent bending sequences, servo motion and robust construction to deliver high output with stable quality. The following key features help you get more finished panels with less labor and downtime.
Complete multi-side bends in a single clamping
Eliminate repeated part repositioning on press brakes
Shorter cycle time and lower risk of handling damage
Handles doors, side panels, drawers and covers on one machine
Fast tool and program change for different sizes and batches
Ideal for mixed-model production and frequent order changes
Servo-driven axes with closed-loop control
Automatic compensation for material thickness and springback
Consistent bending angles across the whole batch
Optimized bending sequence protects visible surfaces
Reduced scratches on painted or stainless steel sheets
Less manual rework and polishing after bending

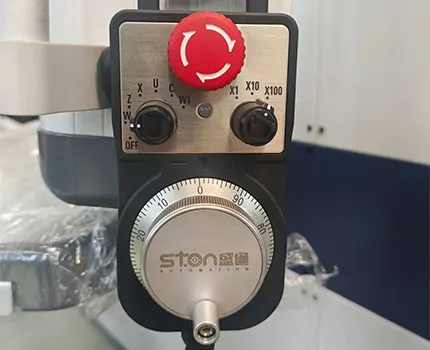

Graphical interface with clear step-by-step guidance
Store and recall bending programs for repeat orders
Short learning curve for new operators
Can work stand-alone or in automatic production lines
Optional loading/unloading and robotic handling systems
Smooth integration with punching and laser cutting equipment
In modern sheet metal factories, every panel must meet strict dimensional and appearance standards. The STON CNC panel bender uses servo control and optimized tooling to keep flange height, angle and straightness within tight tolerances. Stable bending quality reduces scrap, avoids downstream assembly problems and protects your brand reputation in the market.

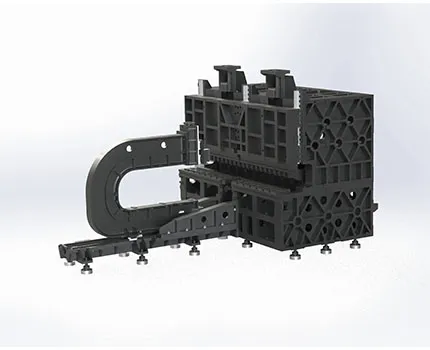

The panel bender adopts a heavy-duty welded frame with stress relief treatment to minimize deformation during long-term operation. High-precision linear guides and ball screws support smooth axis movement, ensuring accurate positioning even when bending large panels for many years.
The panel bender adopts a heavy-duty welded frame with stress relief treatment to minimize deformation during long-term operation. High-precision linear guides and ball screws support smooth axis movement, ensuring accurate positioning even when bending large panels for many years.

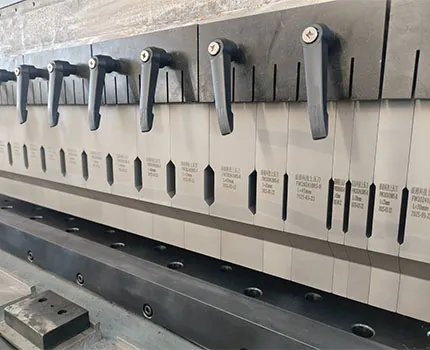

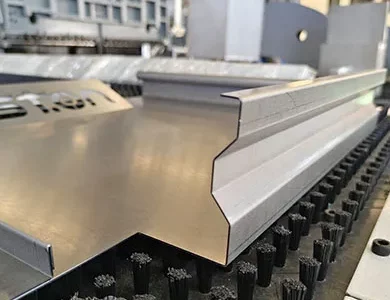

Upper and lower bending blades are driven by servo systems to perform upward and downward bends with controlled speed and angle. Different bending tools can be configured according to flange height, radius and material characteristics, allowing you to handle thin painted sheets and thicker structural parts on the same machine.
Automatic blank clamps hold the sheet securely during the entire bending cycle, while positioning devices square the panel and set reference edges. This prevents part slippage, improves repeatability and reduces angle deviation caused by manual misalignment.

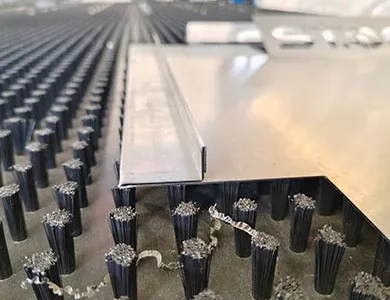

The worktable supports smooth loading and unloading of blanks through ball tables or brush tables, reducing friction and scratches. Optional loading and transfer devices can automatically move panels into and out of the bending area, shortening non-productive time between cycles.

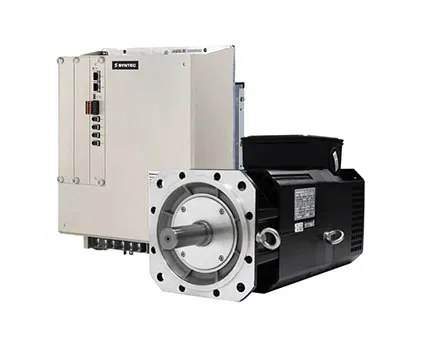

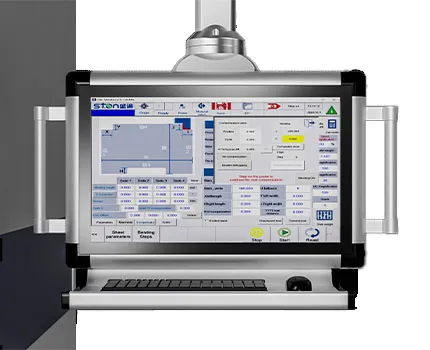

The electrical cabinet integrates branded servo drives, PLC, safety modules and CNC control. Clear wiring layout, labelled terminals and easy access design simplify troubleshooting and maintenance. The software supports remote diagnostics and program updates when needed.
Key motion components are equipped with centralized lubrication points to reduce wear and extend service life. Daily inspection and maintenance can be completed quickly through easily accessible doors and covers, keeping the panel bender running at high efficiency with minimal downtime.
Müşterilerimizle güçlü ve şeffaf ilişkiler kurmaya inanıyoruz. Bu nedenle ortaklarımızı son teknoloji üretim tesisimizi ziyaret etmeye ve üretim sürecimizi yakından görmeye davet ediyoruz.
AnthonySatın Alma Müdürü, HVAC
Komponent Fabrikası (Almanya)
JeffreyFabrika Sahibi, Paslanmaz Mutfak Eşyaları
Üretici (ABD)
Jared- Operasyon Direktörü, Elektrik Kabini
Fabrika (Kanada)

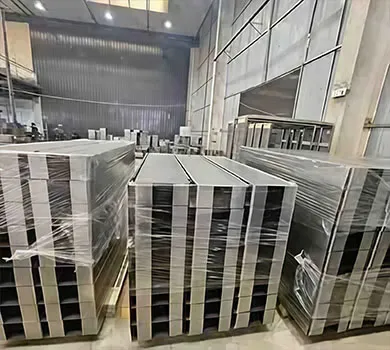

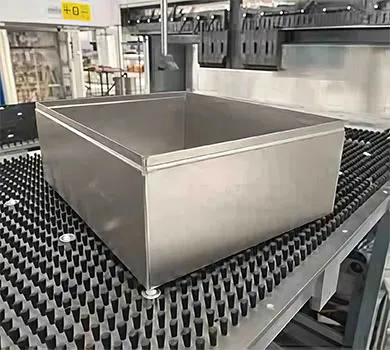

A panel bender is ideal for doors, side panels, covers, drawers, cabinet bodies and other sheet metal parts with multiple flanges. It is widely used in electrical cabinets, lockers, furniture, kitchen equipment and HVAC industries.
In most factories, the panel bender can handle 70–80% of repetitive panel parts. For very thick plates, long profiles or special shapes, press brakes may still be required. We can analyze your part list and suggest a balanced configuration.
Typical configurations handle thin to medium-thickness carbon steel, stainless steel and aluminum sheets used for cabinets, doors and similar products. Exact capacity depends on the model; our engineers will recommend the right machine according to your drawings.
Thanks to the graphical interface and saved programs, most operators can master daily operation after a short training period during installation. Complex new parts can be programmed with the support of our technicians when needed.
Yes. The machine can be connected with turret punch presses, laser cutting units and automatic loading/unloading systems to form a flexible sheet metal production line, from blanking to finished panels.
STON offers lifetime technical support, remote diagnostics, spare parts supply and on-site service when necessary. Our service team helps you solve problems quickly and keep your machine running at high efficiency.
Send us your drawings, material specifications, target output and workshop layout. We will propose a suitable model, configuration and quotation based on your real production requirements.
CNC panel bükücü, programlanabilir servo kontrollü kollar ve bıçaklar kullanarak metal panelleri otomatik olarak hassas şekillere büken bir tür sac metal bükme ekipmanıdır. Geleneksel abkant preslerin aksine, bir CNC panel bükücü hem yukarı hem de aşağı bükme işlemlerini tek bir döngüde gerçekleştirerek daha yüksek hassasiyet, daha hızlı döngü süreleri ve daha az manuel kullanım sunar.
Otomatik panel bükücümüz paslanmaz çelik, soğuk haddelenmiş çelik, galvanizli çelik ve alüminyum alaşım dahil olmak üzere çok çeşitli sac metal malzemelerle uyumludur. Malzeme kalınlıklarını 0,15 mm'den 2,0 mm'ye kadar işleyebilir, bu da onu hem ince ölçülü elektronik muhafazalar hem de ağır hizmet tipi endüstriyel paneller için ideal hale getirir.
Her iki makine de sac bükmek için kullanılsa da, CNC panel bükme makinesi, parçayı manuel olarak yeniden konumlandırmaya gerek kalmadan her yönden otomatik katlama sunar. Bu, bükme tutarlılığını artırır, kurulum süresini azaltır ve yüksek hacimli veya çok çeşitli seri üretim için daha uygundur. Buna karşılık, abkant presler manuel konumlandırma ve birden fazla takım değişikliği gerektirir.
Evet. Sac panel bükücülerimiz robotik kollar, kafes yükleme/boşaltma sistemleri ve otomatik istifleme hatları ile sorunsuz bir şekilde entegre edilebilir. Bu, ham madde beslemesinden bitmiş parça çıkışına kadar tam üretim hattı otomasyonu sağlayarak verimliliği artırır ve işçilik maliyetlerini azaltır.
CNC sac bükme ekipmanları yaygın olarak kullanılmaktadır:

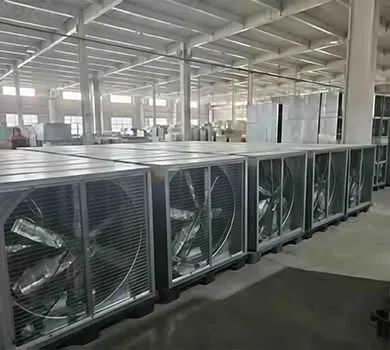

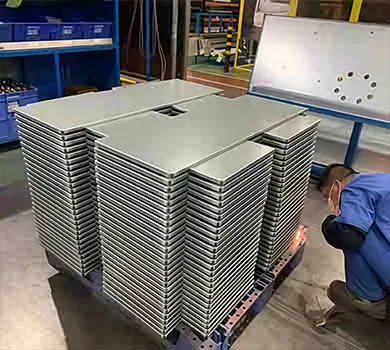

Tıbbi ekipman muhafazaları、HVAC panelleri ve havalandırma üniteleri、Elektrik dolapları ve dağıtım panoları、Alet kutuları, raflar ve aydınlatma armatürleri
Bu endüstriler yüksek hassasiyetli, tekrarlanabilir bükümler talep eder ve panel bükücümüz bu beklentileri karşılamak için üretilmiştir.
İster mevcut bir hattı geliştiriyor ister yeni bir projeye başlıyor olun, STON üretiminiz için bir CNC çözümünü özelleştirecektir.
